Description
Description

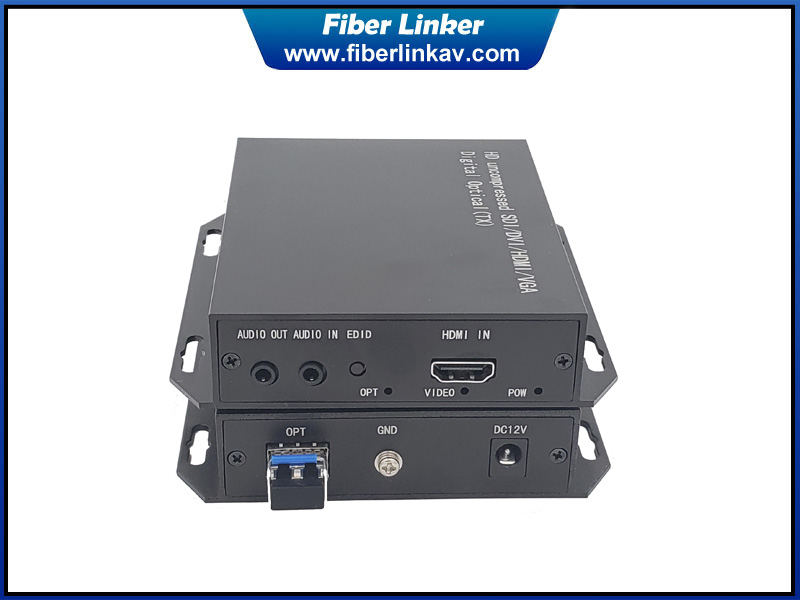

This Kind of HDMI fiber extender could support 1080P resolution super HD video which uses special transfer chip to transfer HDMI singal to 3G differential signal. It transmits the HDMI video signal over optical fiber module and fiber cable so as transmit HD media video to a long distance from 0-80KM by different optical module. This product is no loss, no delay HDMI 1.3 and 3D video. Support 720p/60Hz,1080i/60Hz,1080p/30Hz,1080p/60Hz,1920*1200@60Hz resolution and so on. Support 7.1 PCM stereo audio, compatible with DVI signal. Support DHMI hot plug, low power consumption, long distance, plug and play
Features
1.Full digital, zero compression and zero delayed
2.Support 1-ch HDMI with 1-ch external audio
3.Optional reverse 1-ch stereo audio
4.Support 3Gbps data rate
5.Compatible with HDMI1.3
6.Support 3D
7.Support video resolution up to 1920*1200@60Hz
8.Support to copy EDID.
9.Standard 20KM. Max 80km optional.
10.Compatible with DVI signal transmission.
11.Simple to install, plug and play.
12.Supports Customization and OEM.
Specification
|
Parameter |
Description |
|
|
Video |
Standards |
HDMI 1.3; |
|
Maximum pixel clock |
165MHz |
|
|
Maximum data rate |
6.75Gbps |
|
|
Resolution |
1920*1080@60Hz 1920*1080@50Hz 1920*1080@30Hz 1920*1080@25Hz 1920*1080@24Hz 1080I@60Hz 1080I@50Hz 1280*720@60Hz 1280*720@50Hz |
|
|
Connector |
HDMI-A |
|
|
Impedance |
100Ω |
|
|
Audio |
Interface |
3.5mm earphone seat |
|
Signal type |
1-ch forward Stereo (optional reverse) |
|
|
K/M |
Interface |
Please choose other model for PS2 or USB |
|
RS232 |
Interface |
Terminal block (Please choose other model for data) |
|
Signal direction |
bidirectional |
|
|
Baud rate |
Self-adaptive, Max：115200bps |
|
|
Data bits |
8 |
|
|
Optical fiber |
Interface |
LC connector |
|
Fiber type |
Single-mode single fiber |
|
|
Wavelength |
1310nm,1550nm |
|
|
Output power |
+1 to -10dB |
|
|
Transmission distance |
standard 20km |
|
|
Receiving sensitivity |
-6 to -24dB |
|
|
Other |
Power supply |
The power adapter: DC 12V/1A |
|
Power dissipation |
MAX 6W |
|
|
Temperature |
Operating: -30℃ ~ +40℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
117*111*26mm |
|
|
The warranty |
1 year free warranty, life-long maintenance |
|
