Multiple Two Way 3G-SDI Fiber Extender over single optic cable

Home Telecast AV Broadcast SDI Fiber Optic Extender 3G-SDI Fiber Optic Extender Multiple Two Way 3G-SDI Fiber Extender o

Multiple Two Way 3G-SDI Fiber Extender over single optic cable

  • Product Item:FLS84AD
  • Broadcast Quality Level
  • Compatible with DVB-ASI
  • Uncompressed CWDM Solution
  • Overseas Large Integrator Application
  • Category:3G-SDI Fiber Optic Extender
  • Inquiry Send Email Manual Download

    Description

    Description

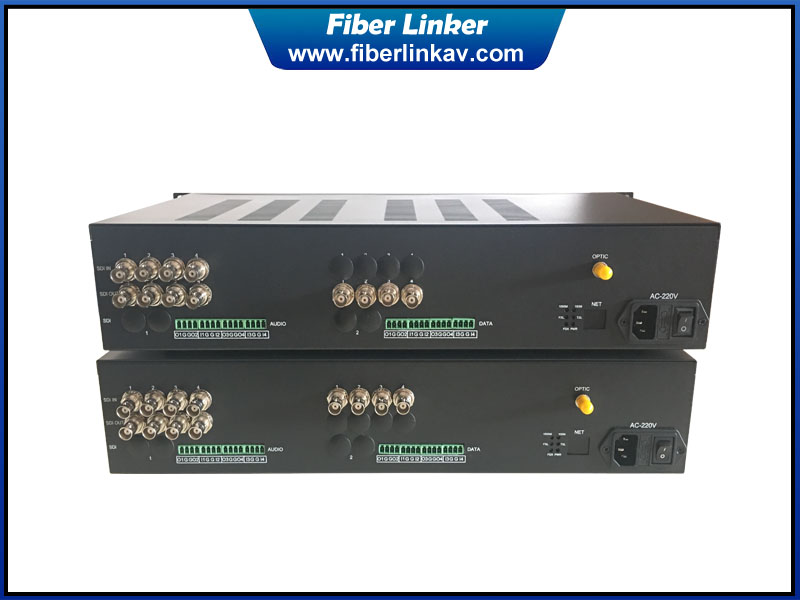

    This 3G-SDI Fiber Extender has 8-ch 3G-SDI forward and 4-ch 3G-SDI reverse with external analog audio and duplex data. The whole box function is transmitted by single core fiber optic cable with CWDM mux and demux inside. This rack mount also could add gigabit Ethernet on it. It is broadcasting quality level with uncompressed technology solution.

    Features

    1. 8-ch forward and 4-ch reverse 3G-SDI/ASI video with 2-ch RS422, 2-ch bidirectional analog audio

    2. Compatible with HD-SDI, SD-SDI, DVB-ASI

    3. Bandwidth range from 19.4Mb/s to 2.97Gb/s

    4. SMPTE 424M (2.97Gb/s) clock recovery

    5. support all popular standards for digital video transport such as SMPTE 424M, SMPTE 292M, and SMPTE 259M, SMPTE      297M working at 3G-SDI, HD-SDI, SD-SDI, ASI respectively

    6. Built-in CWDM system, SFP modules for each path

    7. Support automatic cable equalization based on the data rate detected

    8. LED status indicators monitor the critical parameters

    9. We could make it as your requested specifications

    Specification

    SDI Input

    Number

    8 input on TX and 4 input on RX

    TV signal standard

    SMPTE 424M,292M,259M,297M,305M,310M, M2S, DVB-ASI, DVB-SSI and other Telecom/Datacom rate(19.4Mb/s – 2.97Gb/s)

    Reflection loss

    >15DB

    Equilibrium

    0-100m @ 2.97Gb/s

    Connector

    75Ω BNC

    SDI Output

    Number

    4 output on TX and 8 output on RX

    Signal level

    800mV nominal

    Rise/fall time

    200Ps nominal

    Overshoot

    <10% amplitude

    Reflection loss

    > 15dB

    Jitter

    < 0.2UI

    Connector

    75Ω BNC

    Audio and Data

    2-ch bidirectional analog audio, and 2 duplex RS422. Optional max 8 channels

    Fiber Optic

    Channel

    1

    Type/Distance

    Single-mode/20KM standard, optional max 80KM

    Wavelength

    CWDM 2 wavelength

    Connector

    FC/PC(ST/PC optional)

    Output Power

    About +5dB to +8dB

    Receiver sensitivity

    -8dB for 20KM,optional max is -24dB

    Power and Environmental

    Operating temperature

    -40℃~+45℃

    Power Supply

    90VAC to 245VAC

    Power Consumption

    12W

    EMI/RFI

    FCC Part 15 Class A, EU EMC standard

    MTBF

    >100000 hours

    Other

    Rack

    2U

    Weight

    8Kg (TX+RX)

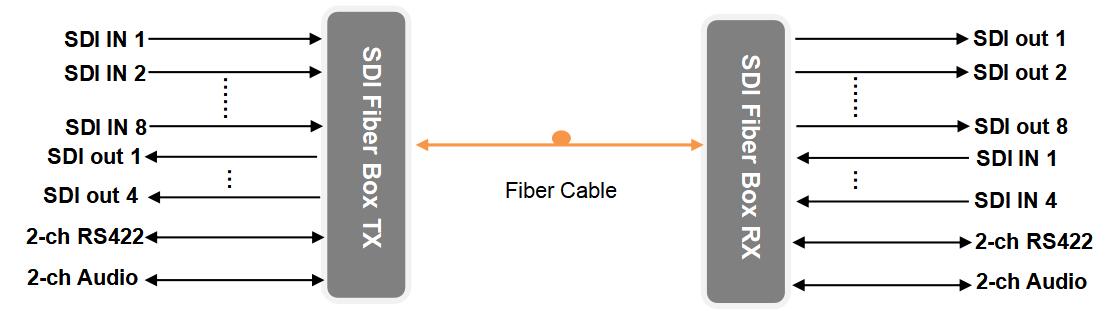

    Diagram
