Description
Description

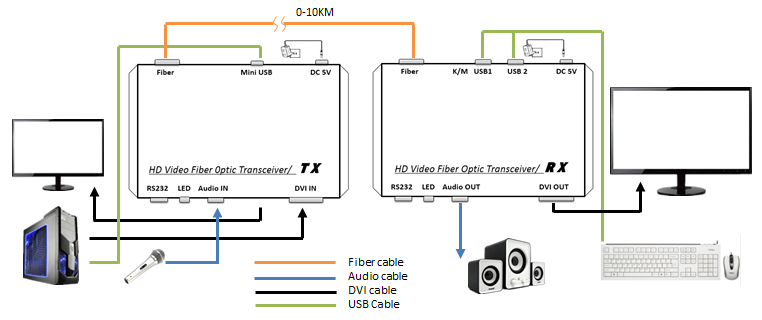

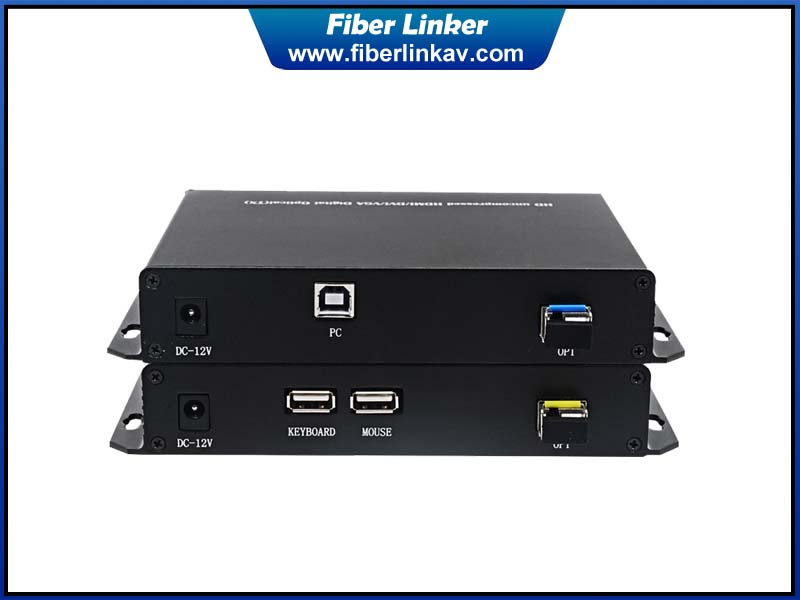

DVI KVM fiber optic extender is a device of high-definition video transmission which uses fiber optic cable. It is also named as DVI fiber converter. Just using a single fiber optical cable will be able to transmit 1080p video with RS232 data and USB keyboard and mouse over a long distance. It supports external audio transmission. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.
Features
1. Compliance with DVI1.0 standard,
2. Support DVI signal input or output.
3. Support Duplex RS232
4. USB KVM function supports keyboard and mouse
5. No compression and stable working
6. Support 1080P, single mode fiber transmission up to 20 KM
7. Real-time transmission of high-definition uncompressed digital DVI video signal, the video is clear and stable
8. Built-in ESD protection circuitry, can effectively prevent electrostatic damage
9. Site installation: easy, plug and play, no need to set
10. Support rack mount for insert cards
11. We could do 16 channels DVI over single core optical cable
Specification
|
Transmitter |
1 DVI |
|
Receiver |
1 DVI |
|
Support Video Format |
1920*1080/60Hz,1280*1024/60Hz， 1280*768/60Hz，1280*720/60Hz, 1024*768/60Hz,800*600/60Hz, |
|
Bandwidth |
3Gbps |
|
Transmission distance |
The default is 20KM for single mode, 300meter for multimode， optional max is 80KM |
|
Input and output audio interface |
3.5MM Audio |
|
USB |
KVM for keyboard and mouse |
|
Serial port baud rate(duplex) |
115200 and following adaptively |
|
Fiber Port |
LC/SFP |
|
Wavelength |
1310nm |
|
Input Power |
DC5V |
|
Power Consumption |
VGA Transmitter 4W VGA Receiver 4W |
|
Dimensions |
Long*Wide*High(mm)155X115X30 |
|
Operating Temperature Range |
-30 to +70°C |
|
Operating humidity range |
5 to 90 % RH (no condensation) |
|
Package Size |
300*252*100mm |
|
Weight |
1.8kg for transmitter and receiver |
