Description
Description

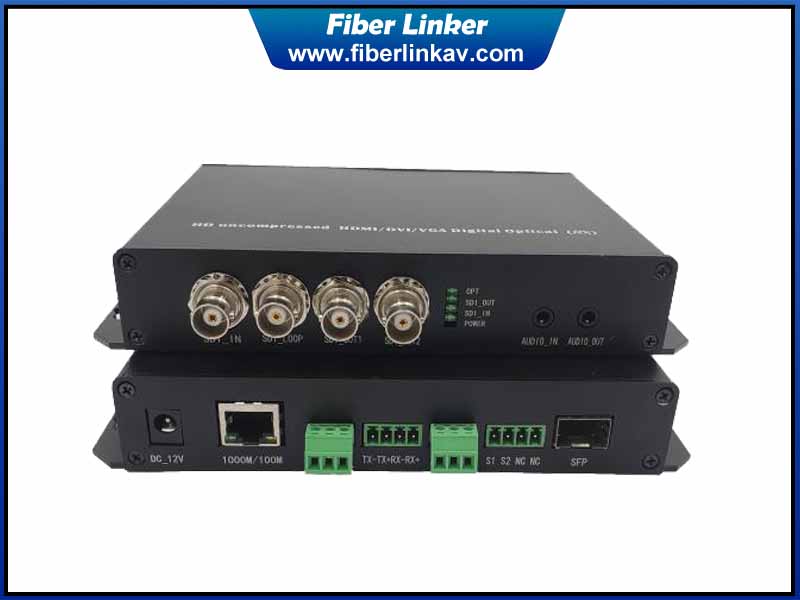

This 3G-SDI Fiber Optic Converter has excellent choice for SDI cctv surveillance optical transmission system. The converter could extend two way bidirectional 3G-SDI digital signal to a long distance over single core optical fiber cable. It is compatible with HD-SDI, SD-SDI. The inside 10G SFP module is specialized for multiple function use. We could supply or OEM any SDI fiber optic extender with virous functions like adding Ethernet, Tally, GPIO, Serial Data, external Audio.
Features
1. All-digital, uncompressed SDI fiber transmission with multiple functions
2. Support 1-ch bidirectional 3G-SDI, each SDI has local loop out, Full HD, 1920*1080@60
3. Optical interface SFP (LC) optical attenuation - 3db
4. 1 bidirectional stereo analog audio, 1 channel RS422, 2-ch RS232, 1-ch tally(contact closure)
5. Compatible with SD-SDI, HD-SDI, 3G-SDI standards
6. Automatically identify and configure various display modes
7. Built-in automatic equalization, the picture is clear and stable
8. Built-in ESD protection circuit to prevent static damage
9. On-site installation: simple and convenient, plug and play, no need to set
Specification
|
Name |
Description |
|
|
Video |
Interface |
SDI |
|
Agreement |
SDI |
|
|
Pixel bandwidth |
165MHz |
|
|
Resolution |
SD-SDI: 576I 480I HD-SDI: 720P50 720P60 1080P24 1080P25 1080P30 1080I50 1080I60 3G-SDI: 1080P50 1080P60 |
|
|
Audio |
interface |
industrial terminal |
|
Format |
44.1K,48K,96K,176K,192K |
|
|
RS232 |
interface |
industrial terminal |
|
Baud rate |
115200 down compatible |
|
|
Data |
8 bits |
|
|
Fiber |
interface |
LC |
|
Type |
SFP single mode |
|
|
Wavelength |
1550/1310nm |
|
|
Bandwidth |
3Gbps |
|
|
Distance |
10KM 20KM 40KM 60KM 80KM |
|
|
Attenuation |
-3db |
|
|
Other |
Temperature |
-20 to +75°C |
|
Humidity |
5 to 90 % |
|
|
Power consumption |
4W |
|
|
Power |
DC 12V1A |
|

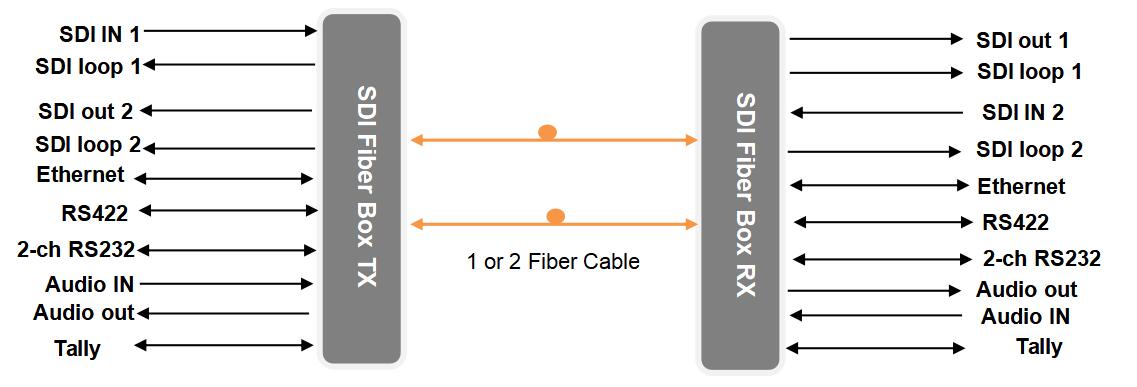

Diagram
